High Quality multi type IP65 AC250V DC300V hydraulic electric pneumatic solenoid valve coil

High Quality multi type IP65 AC250V  DC300V Hydraulic electric pneumatic solenoid valve coil  Product Description   1" width="915" cellspacing="0" cellpadding="0">

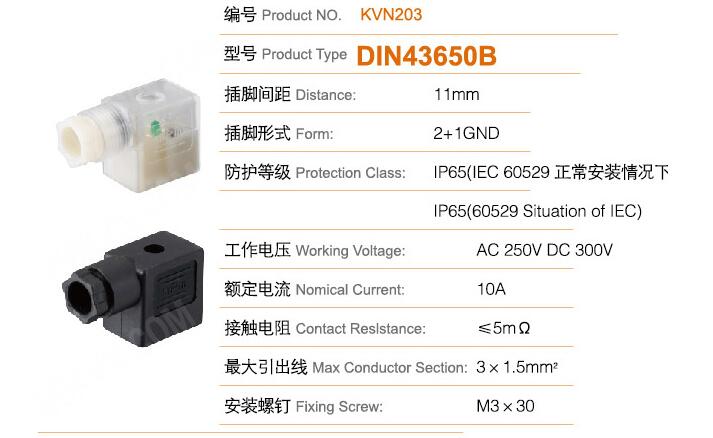

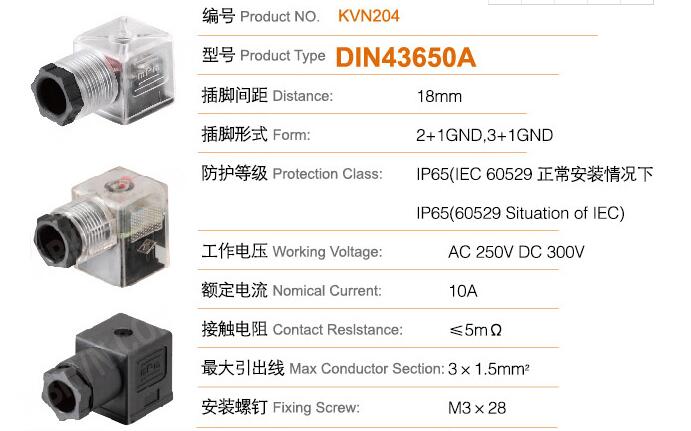

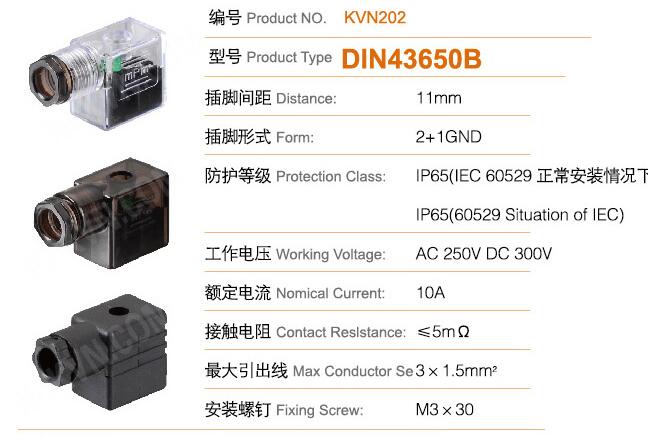

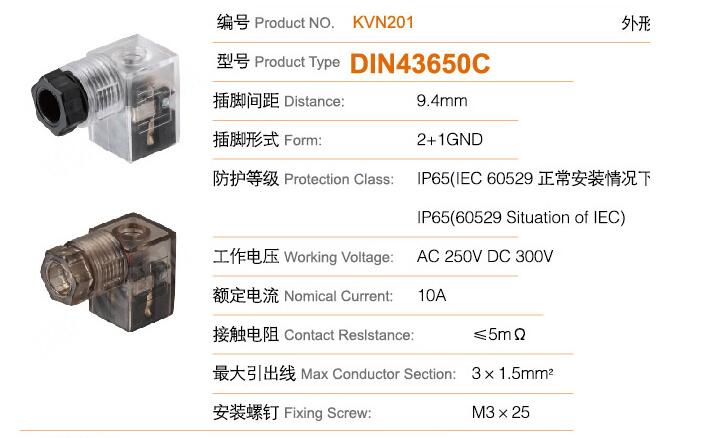

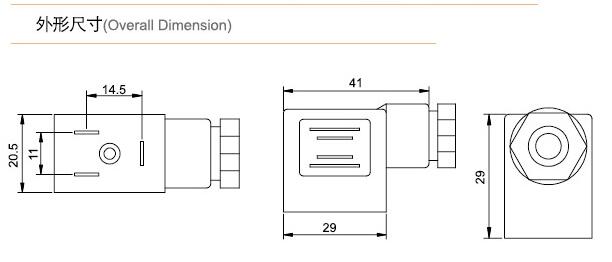

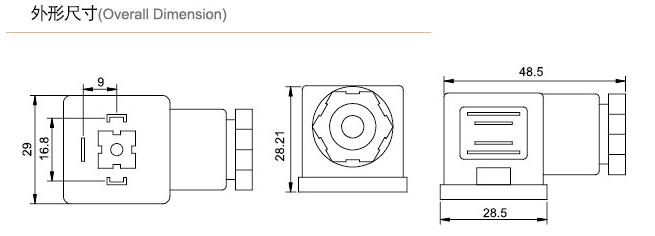

Type No.	DIN43650A	DIN43650B	DIN43650C
Distance	18mm	11mm	9.4mm
Form	2+1GND , 3+1 GND	2+1GND	2+1GND
Protection Class	IP65(IEC 60529 Situation of IEC)	IP65(IEC 60529 Situation of IEC)	IP65(IEC 60529 Situation of IEC)
Working Voltage	AC250V  DC300V	AC250V  DC300V	AC250V  DC300V
Rated Current	10A	10A	10A
Contact Resistance	less than5 mΩ	less than5 mΩ	less than5 mΩ
Max Conductor Section	3x1.5mm2	3x1.5mm2	3x1.5mm2
Fixing Screw	M3 x28	M3x30	M3x25

Related Products Why Choose Us NINGBO CCTSA PNEUMATIC TECHNOLOGY CO.,LTD. is a professional manufacturer of industrial shock absorber and hydraulic speed controls. With a strong research and development team, leading technology and reliable test equipment, we can provide you comfortable, reliable and safe products.   Our products widely used in PET blowing industry, robot technology, lumber industry equipment, circuit breaker, pick and place systems and Other deceleration, vibration control industry.
The company is an ISO9001:2008 certified company. After strict factory inspection, our company has become the supplier of GE,MISUMI and ALSTOM GRID.     FAQ

Q1. Is sample order acceptable?

A: Yes.It's ok.

Q2. How to place the order?

A: You can send us email or inquiry at alibaba directly.

Q3. How to make the payment?

A: We accept BankT/T,Western Union,Paypal

Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery



Contact us if you need more details on Solenoid Coil. We are ready to answer your questions on packaging, logistics, certification or any other aspects about solenoid valve coil、pneumatic solenoid valve coil. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Automation Control Parts
